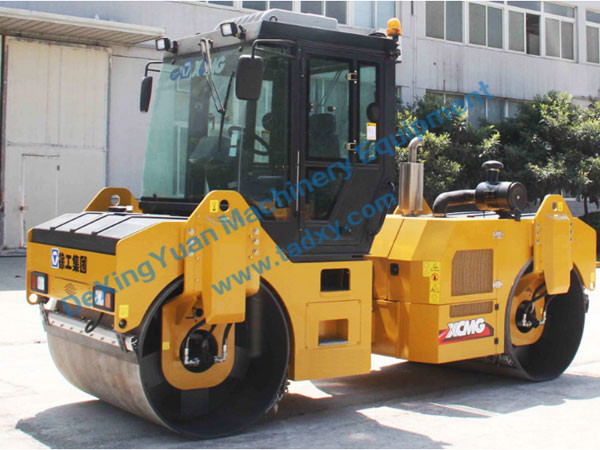

XD85 Hydraulic Double Drum Vibratory Compactor
Item | XD82 | |
Distribution of axle laden mass | Operating weight（kg） | 8500 |
load on front drum（kg） | 4250 | |
Load on rear wheels（kg） | 4250 | |
Compaction performance | Static linear load（N/cm） | 248/248 |
Nominal amplitude（mm） | 0.35/0.70 | |
Vibration frequency（Hz） | 48/45 | |
Excitation force (high/low amplitude)（kN） | 40/80 | |
Vibration drum size（mm） | 1150×1680 | |
Maneuvering characteristics | Speed（km/h） | 0～9.5 |
Gradeability in theory（%） | 30 | |
Minimum turning radius | 4100/5780 | |
Swing angle | ±8° | |
Steering angle | ±38° | |
Engine | Modle | DEUTZBF4M2012-10T3R |
type | 4-cylinder,water cooled | |
Rated power（kW） | 74.9 | |
Rated rotating speed（r/min） | 2300 | |
